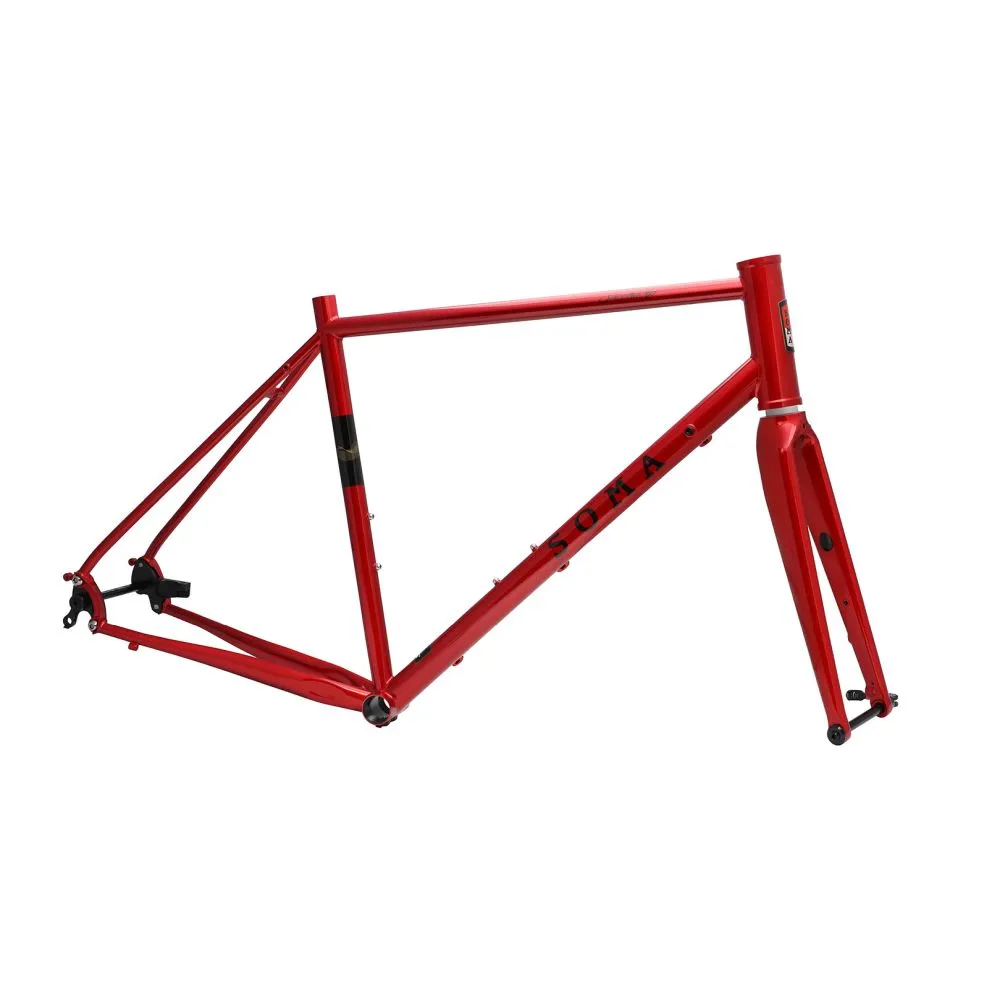

The Smoothie HP is the “high protein” version of our Smoothie road frame that was part of our line for almost 20 years. Extra large diameter, thin-wall Tange Prestige chromoly coupled with modern touches like thru-axles and compact geometry give this frame increased power transfer and road feel while still delivering a composed and plush ride at all speeds. The re-designed geometry combines a comfortable higher stack with a shorter wheelbase that rewards skillful riders.

• Tange Prestige heat-treated double butted CrMo steel
• Extra-oversized down tube and chainstays for greater pedaling stiffness
• Ovalized top tube for increased lateral stiffness and vertical compliance
• Size specific tubing, larger downtubes on larger sized frames
• Comfortable high stack matched with a tighter wheelbase than the typical big brand endurance road frame
• Replaceable modular dropouts (12 x 142mm bolt-on thru-axle, fits flat mount disc brake)
• BSA Threaded bottom bracket shell
• Rear rack/fender mounts
• Max tire size: 700x32c with fenders
• Two water bottle boss sets

SPECIFICATIONS AND RECOMMENDATIONS

FRAME

• Seatpost: 27.2mm, Seat collar: 29.8 or 30.0mm
• Front derailleur: 28.6mm, bottom pull
• Rear hub thru-axle: 142mm x 12mm
• Headset SHIS: ZS44/28.6 | EC44/40)
• Max.Tire Fit: 700c x 35mm (certain front derailleurs may reduce tire clearance)
• Min. Tire Recommendation: 700c x 23mm - Max chainring fit: 52-39-30t, 53-39t,
• Bottom bracket shell: 68mm wide, English threads
• Compatible with downtube shifters
• Rear disc brakes: 140mm rotors (160mm max), Flat mount
• Also compatible with 57mm reach road rim brake
• Rear rack fitting: We recommend a rear rack designed for short chainstay bikes like our Rakku to reduce heel strike with large bags.
• Recommended fender fit: 37-45mm wide; ideally 10mm wider than tire width
• Maximum weight with rider and cargo: 270 lbs

FORK

• Rake: 43mm (48mm for size 48cm and 52cm)
• Axle to crown: 380mm
• Disc brake mount type: Flat mount, 160mm max rotors
• Also compatible with 57mm reach road rim brake
• Hub thru-axle: 100 x 12
• Fender mounts on inside of legs
• Max.Tire Fit: 700c x 35mm
• Steerer: Aluminum, so you can use either star washers or a compression (expansion) plug with your headset. 350mm long
