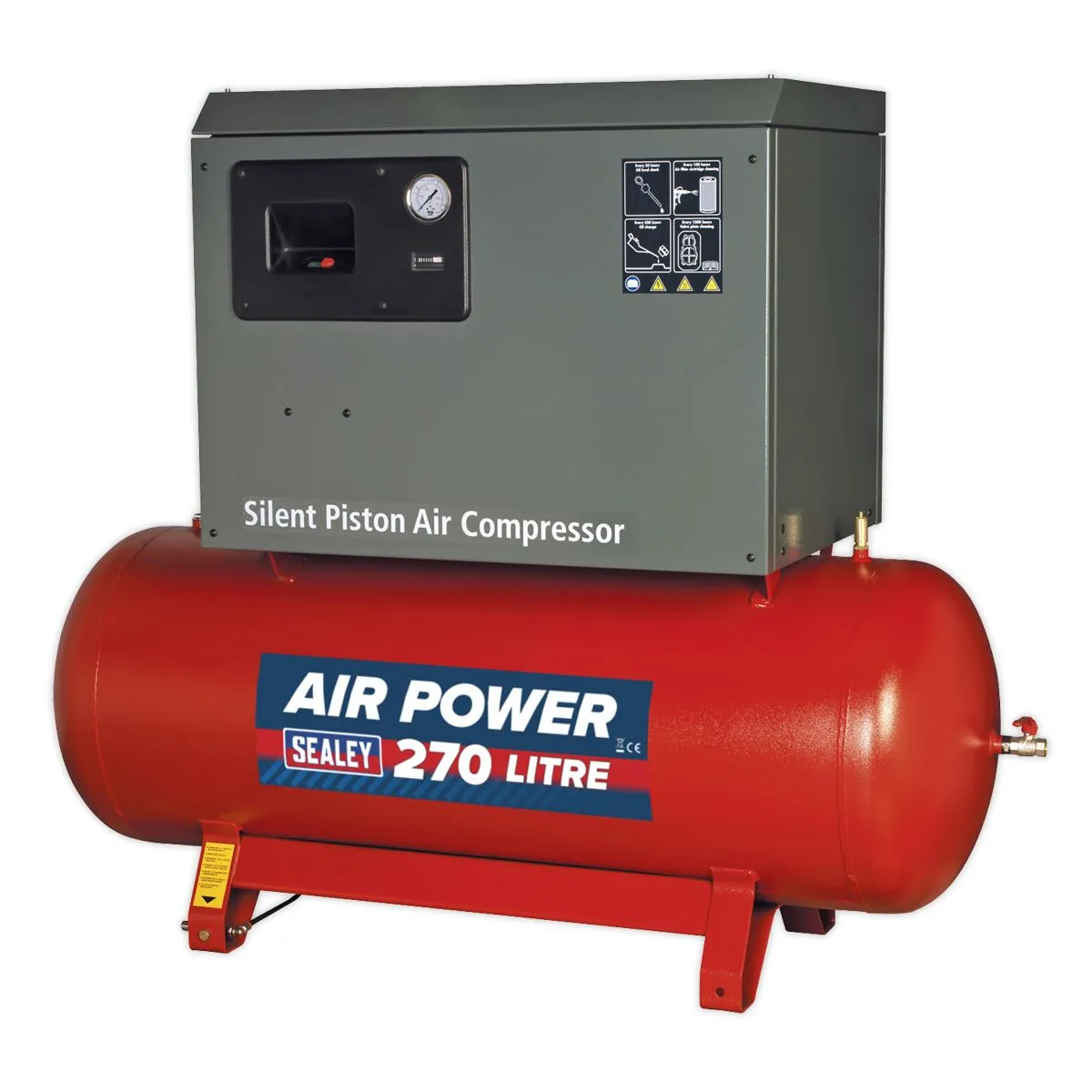

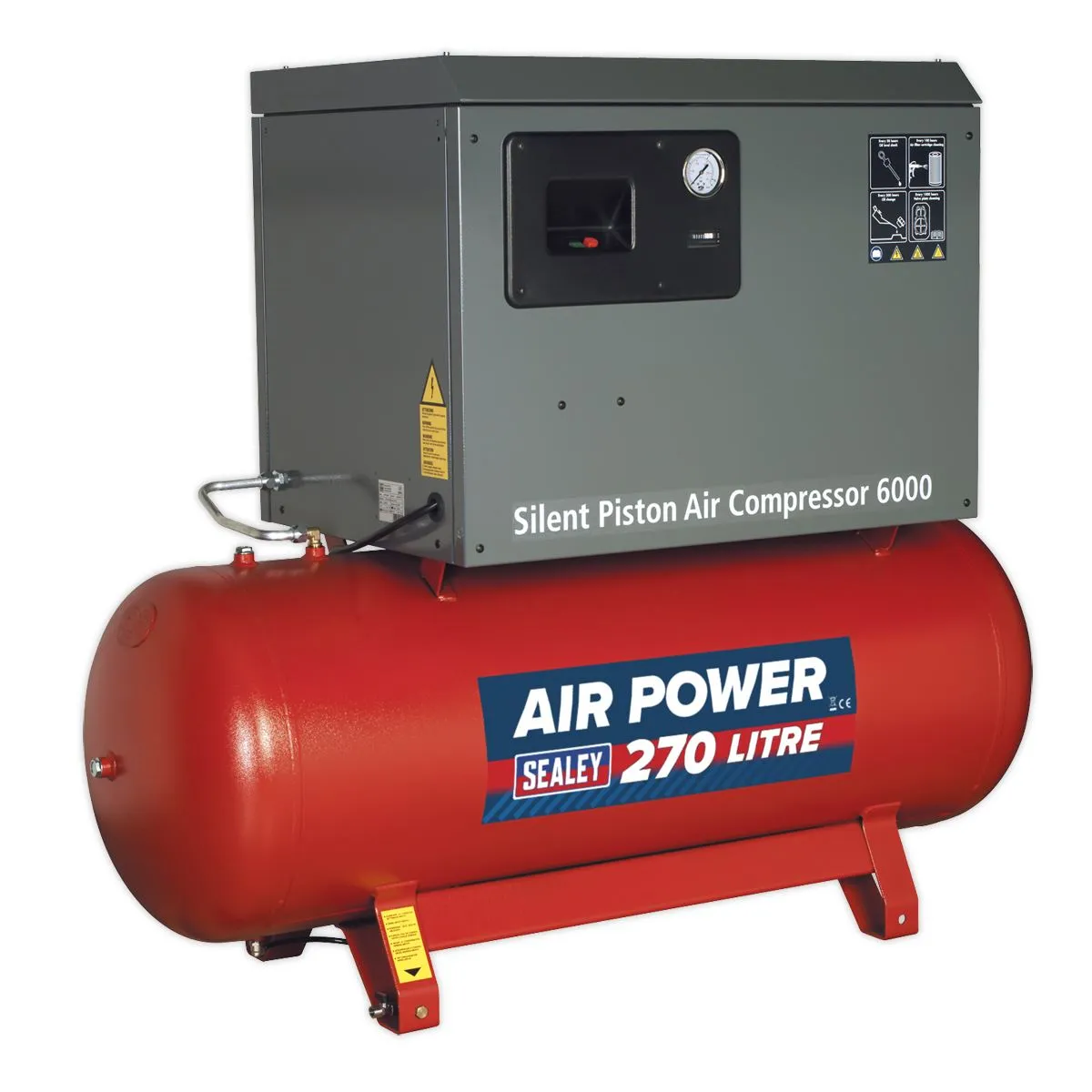

Sealey 270L Low Noise Belt Drive Air Compressor with Cast Cylinders 5.5hp 3ph 2-Stage

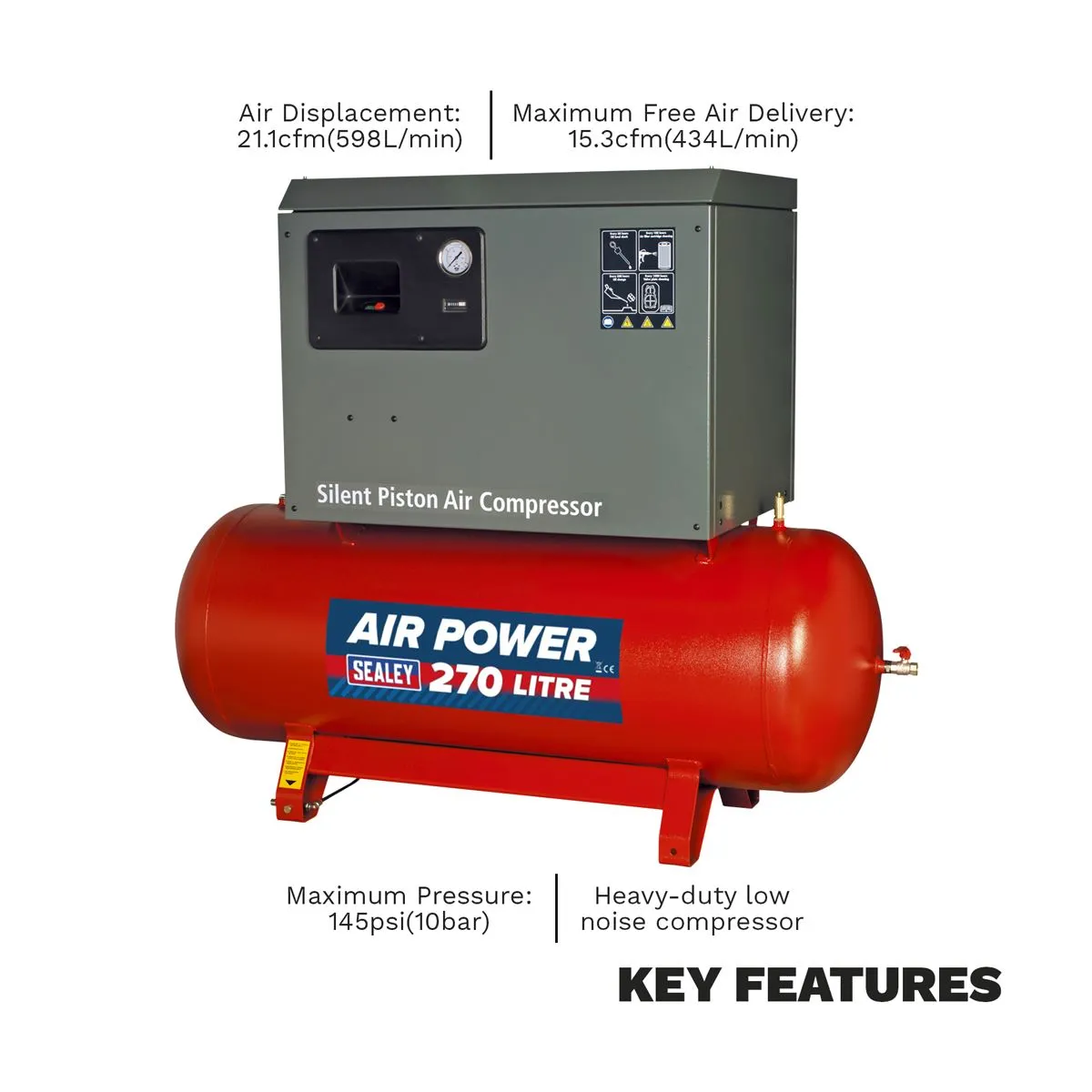

Air Displacement: 21.1cfm(598L/min).
Maximum Free Air Delivery: 15.3cfm(434L/min).
Maximum Pressure: 145psi(10bar).
Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.
Fitted with cast iron cylinder head enabling slower revving and improved pump life.

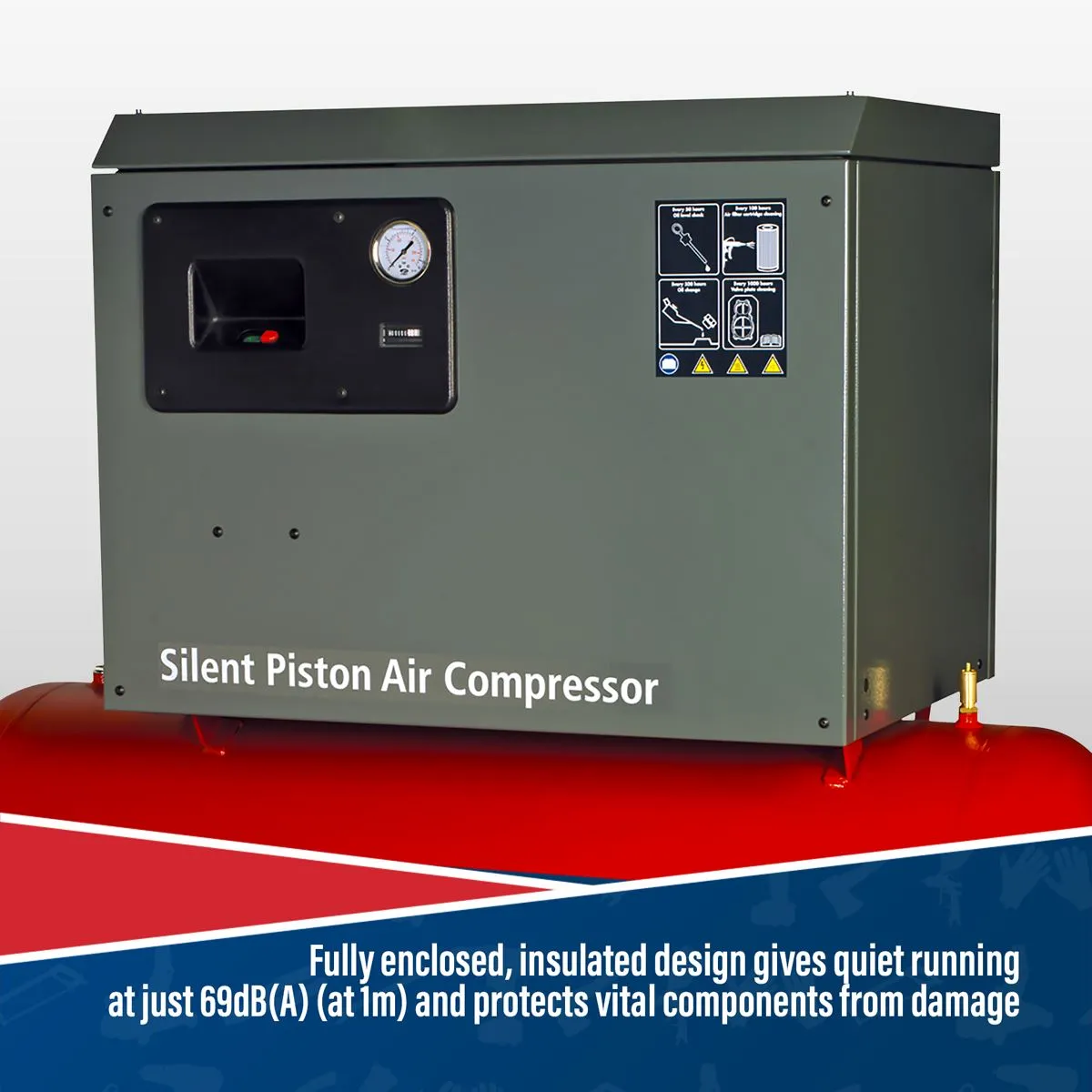

Fully enclosed, insulated design gives quiet running at just 69dB(A) (at 1m) and protects vital components from damage.

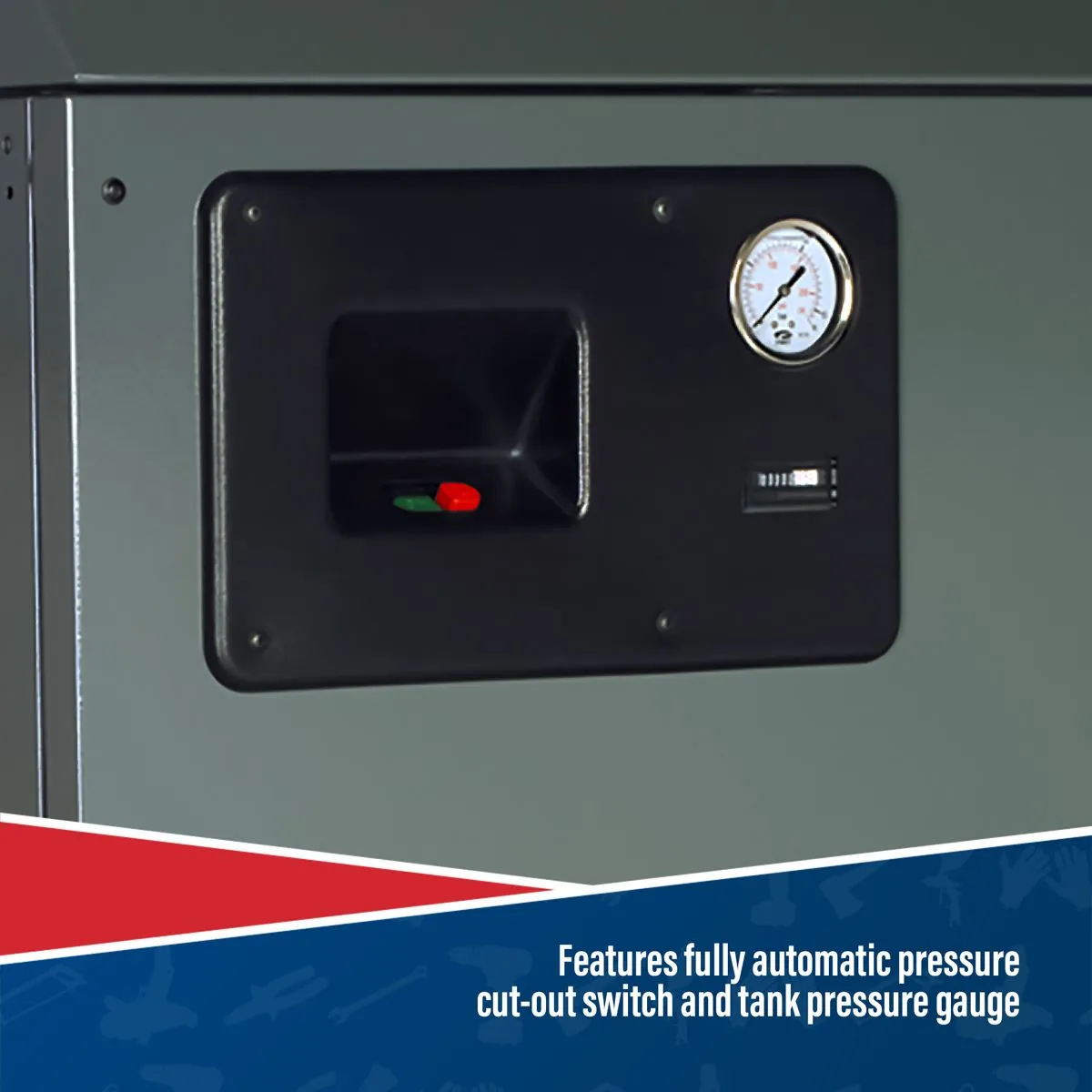

Features fully automatic pressure cut-out switch and tank pressure gauge.
Heavy-duty 3-phase electric motor with soft start feature.

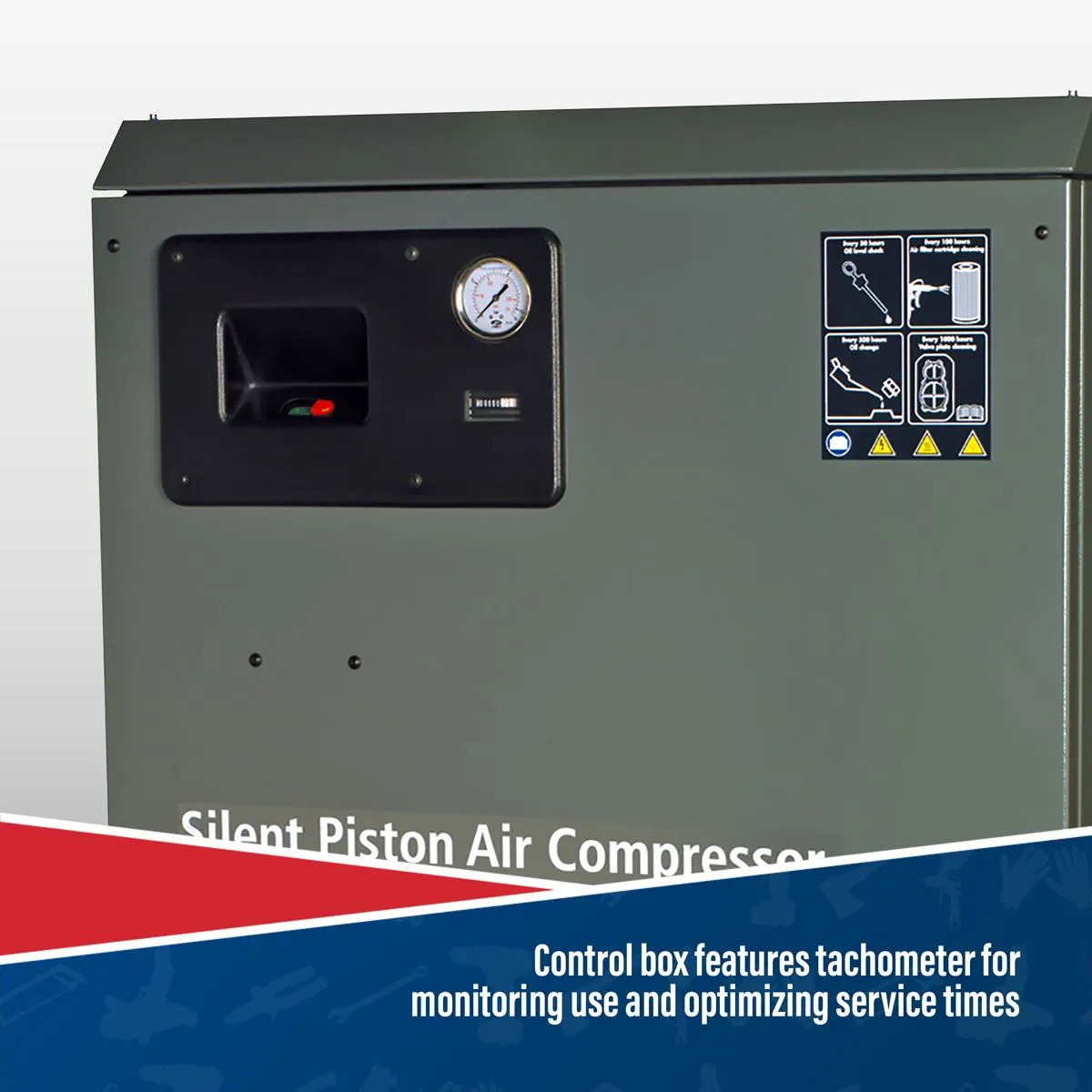

Control box features tachometer for monitoring use and optimizing service times.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Specification:
- Model No SAC42755BLN
- Air Displacement cfm(L/min): 21.1(598)
- Brand: Sealey
- Maximum Free Air Delivery cfm(L/min): 15.3(434)
- Maximum Pressure: 145psi(10bar)
- Minimum Rated Supply: 32A
- Motor Output: 5.5hp
- Nett Weight: 198kg
- Noise Level: 69dB(A)
- Oil Capacity: 1.2L
- Outlet: 1/2"BSP Female Tap
- Phase: 3ph
- Receiver Capacity: 270L
- Motor Output: 5.5hp
- Supply: 415V
- Phase: 3ph
- Minimum Rated Supply: 32A
- Speed: 1516rpm
- Noise Level: 69dB(A)
- Air Displacement cfm(L/min): 21.1(598)
- Maximum Free Air Delivery 15.3(434)
- Maximum Pressure: 145psi(10bar)
- Receiver Capacity: 270L
- Outlet: 1/2" BSP Female Tap
- Size (W x D x H): 1550 x 600 x 1260mm
- Weight: 198kg
- Size (W x D x H): 1550 x 600 x 1260mm
- Speed: 1516rpm
- Supply: 415V
Catalogue Page: Page 783
Downloadable Files:
- Instructions:
- Material Safety Data Sheet:
- Parts Diagram:
