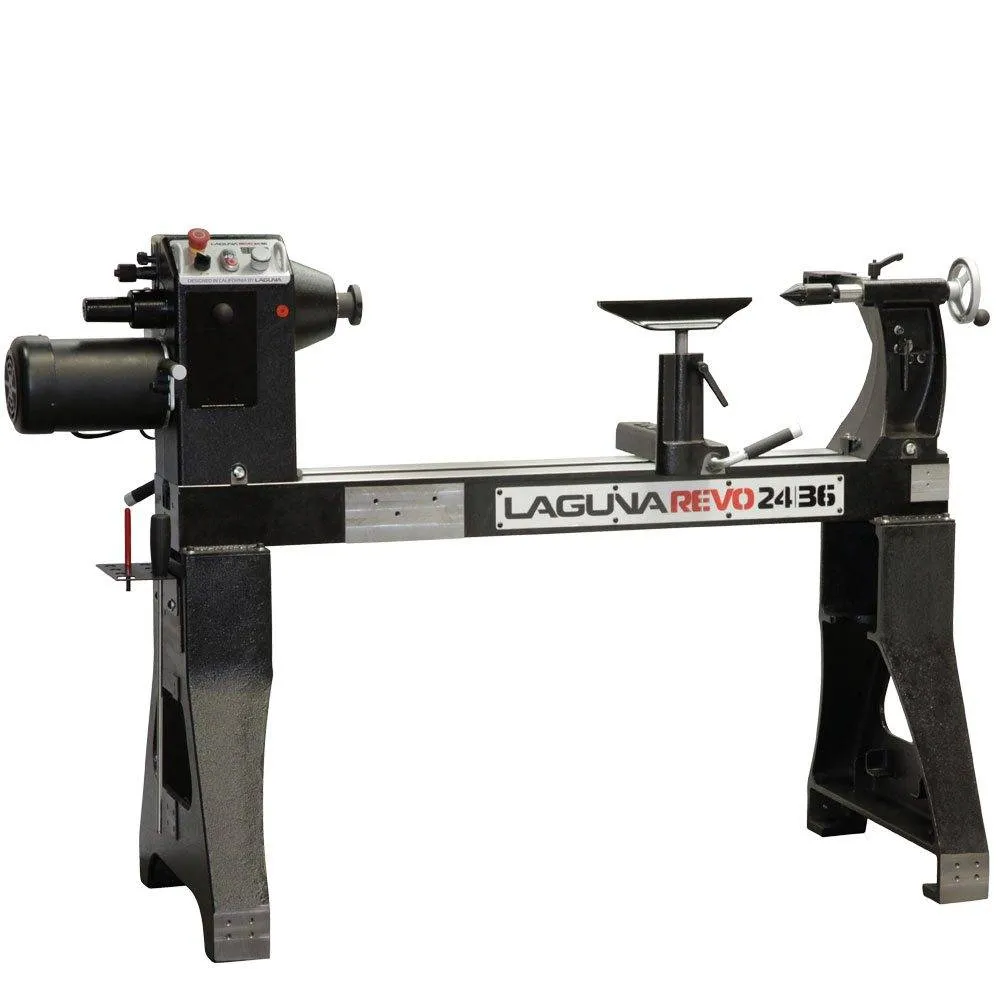

Name: Laguna Revo 24|36 Lathe 220 Volt
SKU: 235802

Laguna Revo 24|36 Lathe 220 Volt

We take a $100.00 deposit at time of order and bill the balance when the lathe is shipped.

The First feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful, knurled control knob fitted with a rubber grip signals this is no ordinary lathe. The bed is made from steel which allows the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well-known longevity & strength. Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout at all times any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle. The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your workflow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.

Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz
Phase: 1-Phase Input, 3-Phase Output
Recommended Breaker Size: 15 Amp
VFD: Delta S1 Variable Frequency Drive
Remote Control Box w/Speed Settings
Two Ergonomic Control Panel Positions: High/Low
Drive Belt: Poly-Groove with EZ Access
Tailstock Quill: 4½”, Engraved, Self-Ejecting
Floor to Spindle Center: 44½”
Front Bearing: TPI Taiwan 6307LLU
Rear Bearing: TPI Taiwan 6205LLU
Spindle Index#: 14/36/48 w/Lock
Distance Between Centers: 36″
Headstock Through-Bore: ⅜”
Headstock Travel: Full Length
Tailstock Through-Bore: ⅜”
Tailstock Storage of Centers
Toolrest Post Size: 1”

Spindle Size: 1¼” X 8 TPI RH
Floor to Bed: 32½” with Pads
Spring Loaded Spindle Lock
Max. Outboard Swing: 38″
Swing over Banjo: 19¾”
Face Plate: 3″ Diameter
Tool Rest: 12″
Steel Bed: ASTM A36
Headstock Spindle: MT2 taper hardened to 40° HRC
Tailstock Quill: MT2 taper hardened to 40° HRC
Swing Over Bed: 24″
RPM: High: 135-3500 Low: 50-1300
Dimensions: 60″ W x 26″ D x 52¼” H
Weight for 220V (Ship): 610 Lbs.
The basic dynamic load rating is 30% higher than a 6207 ball bearing.
Wall thickness of legs has been increased 80% over the Revo 18|36.
Redesigned banjo features more compact design, 45˚ cutout, wider base, increased eccentric rod diameter and larger hanger resulting in a more solid feel when locking in place.

Features:

Quick-release handle for switching from high to low-speed ranges
Rear-mounted handles eliminate obstructions on the front of the lathe
Handles are comfortably designed, and use a cam lock for fast, secure tightening and release
Centers can be stored on the tailstock
Spindle lock is spring-loaded

Forward and reverse feature lets you reverse the lathe for sanding—great for directing dust away from the user and into a dust hose

Shipping:

There is an additional $100.00 shipping charge for this item which is billed separately after the order has been placed.
Ships directly from the manufacturer.
Must be shipped within 48 Contiguous United States.
Estimated Delivery time: 7-14 business days.
The carrier will need to know if delivery is to a residential address. There is no additional charge for this.
The delivery truck will need a lift gate if a loading dock is not available. There is no additional charge for this.
Items shipped by truck are to be delivered to curbside only.
