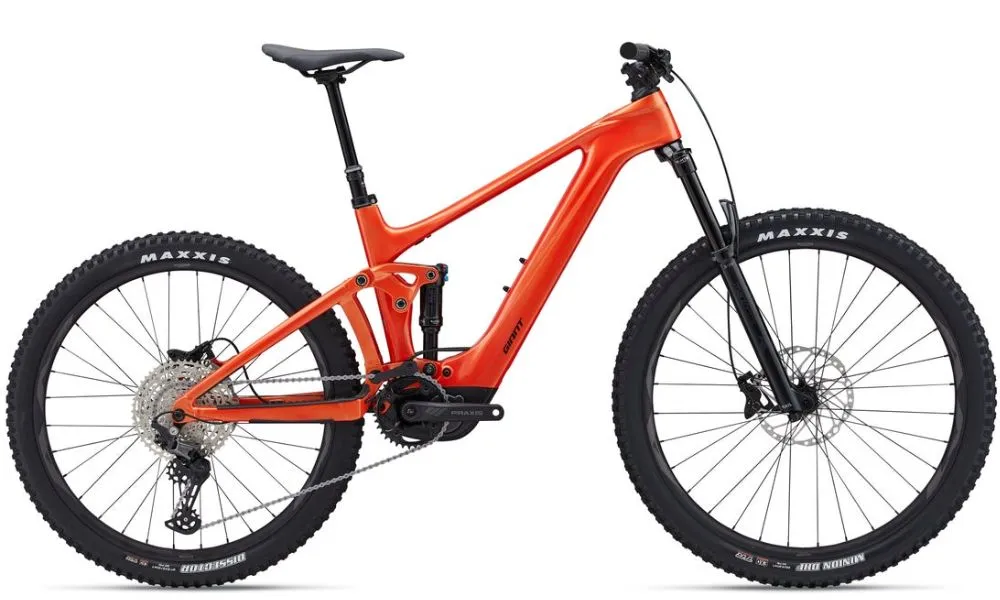

Giant 2024 Trance X Advanced E Elite 3
ACCELERATE UP CLIMBS, FLOAT THROUGH ROCK GARDENS, AND EXPERIENCE MORE POWER, AGILITY AND CONTROL WITH THIS LIGHTWEIGHT, FULL-SUSPENSION E-MTB. THE ULTRA-SLIM BATTERY MINIMIZES WEIGHT SO YOU CAN RIDE TECHNICAL TRAILS THE WAY YOU ALWAYS DREAMED OF.
Lighter weight
EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
Advanced cockpit control
RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
More power
New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterizes SyncDrive Pro motors.
Specifications
Giant 2024 Trance X Advanced E Elite 3
Frame
Colour: Helios OrangeFrame: Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle
Fork: Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110
Shock: Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, custom tuned
Drivetrain
Crankset: Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mmPedals:
Chain: KMC e.12 Turbo, EcoProteq, e-bike optimised
Bottom Bracket: NA
Rear Derailleur: Shimano Deore, 12-speed, Shadow
Front Derailleur: MRP HD2 co-moulded chain guide
Derailleur Shifter: Shimano Deore
Freewheel/Cassette: Shimano CS-M6100-12, 10-51T, 12-speed
Wheels
Tyres: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]Wheels/Rims: Giant AM, alloy 29"[F], 27.5" [R]
Hubs: [F] Shimano MT410 15x110 [R] Shimano MT410 12x148
Braking System
Brakes: Shimano BR-M420, 4-piston, hydraulic disc, [F] 203mm, [R] 203mmBrake Levers: Shimano Deore, I-spec EV
Other
Handlebar: Giant Contact SL 35 Trail, 35Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm
Saddle: Giant Romero
Seat Post: TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9
E-Bike
Motor: Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technologyController: RideControl Ergo 3, grip integrated
Display: RideControl GO, frame integrated LED display ANT Wireless display compatible
Charger: EnergyPak 4A smart charger compact
Battery: EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible
Geometry
Giant 2024 Trance X Advanced E Elite 3
-
- S
- 163 cm 174 cm
-
- M
- 171 cm 182 cm
-
- L
- 179 cm 190 cm
-
- XL
- 187 cm 198 cm
| S | M | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 400 | 425 | 450 | 475 |
| B | SEAT TUBE ANGLE | 77.2° | 76.0° | 76.0° | 76.0° |
| C | TOP TUBE LENGTH (mm) | 577 | 607 | 636 | 665 |
| D | HEAD TUBE LENGTH (mm) | 95 | 100 | 115 | 130 |
| E | HEAD TUBE ANGLE | 65.7° | 65.8° | 65.8° | 65.8° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 113.1 | 113.1 | 113.1 | 113.1 |
| H | WHEELBASE (mm) | 1194 | 1215 | 1244 | 1275 |
| I | CHAIN STAY LENGTH (mm) | 447 | 447 | 447 | 447 |
| J | BOTTOM BRACKET DROP (mm) | 10 | 10 | 10 | 10 |
| K | STACK (mm) | 607 | 611 | 625 | 639 |
| L | REACH (mm) | 439 | 457 | 480 | 505 |
| M | STAND OVER HEIGHT (mm) | 726 | 733 | 732 | 741 |
| N | HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| O | STEM LENGTH (mm) | 40 | 40 | 50 | 50 |
| P | CRANK LENGTH (mm) | 160 | 165 | 165 | 170 |
| Q | WHEEL SIZE | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" | [F] 29" [R] 27.5" |
