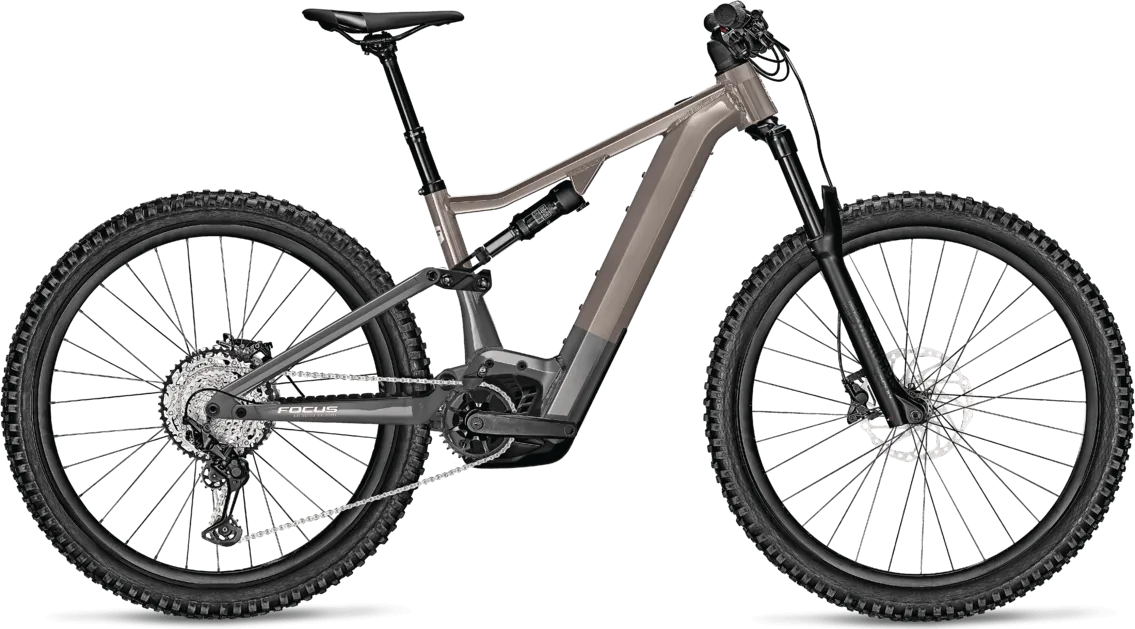

- BOSCH SMART SYSTEM WITH PERFORMANCE CX E-DRIVE, LED REMOTE AND 625 WH BATTERY
- 150 MM TRAVEL ROCKSHOX RECON RL SUSPENSION FORK AND 150 MM F.O.L.D. KINEMATICS WITH ROCKSHOX DELUXE SELECT REAR SHOCK
- RELIABLE SHIMANO SLX 1X12 SHIFTING AND SHIMANO 4-PISTON BRAKES PLUS FULLY INTEGRATED C.I.S. CABLE ROUTING
Conquers new mountains
SUPER POWERFUL AND DYNAMIC BOSCH PERFORMANCE LINE CX E-DRIVE
Thanks to the efficient Bosch Performance Line CX system, you can ride more trails in the same time. The powerful e-drive with a torque of up to 85 Nm makes sure uphill with the JAM² 6.7 is fun as well. Even though the motor has got your back on climbs, you can still easily control your full-suspension bike, also in toughest conditions. The slide-out battery with 625 Wh can be charged via the integrated charging port at the bike’s seat tube. Alternatively, you can also remove the battery easily and fast. There is no need for any tools. Just unlock the buckle and open the cover to slide out the battery.
GEOMETRY FOR MAXIMUM FUN ON ALL TYPES OF TRAILS
Battery and drive unit are perfectly integrated into the e-MTB's frame giving the JAM² 6.7 a slim look. Further, the battery is placed as low as possible into the down tube. This frame design improves the bike's centre of gravity and makes the full suspension bike more stable on descents. The balanced geometry adds up to the e-MTB's stability. All key dimensions are evaluated carefully to match the bike’s purpose and ensure fun on all trails. The low stand-over height improves bike handling in technical terrain. By turning the headset cups, you can easily change the head angle of your JAM² 6.7 according to your riding preferences from 65.5° to 64.5°.
FULL CONTROL IN ANY SITUATION
When optimising the F.O.L.D. (FOCUS Optimised Linkage Design) of our JAM² 6.7, it was extremely important to create a reactive kinematics and suspension for full control – whether it’s a technical or flow trail, no matter if you go up or down. Wide and tacky 29" tyres improve traction on every surface, while you can always rely on strong brakes. Thanks to great brake modulation, you can reduce your speed precisely and with high confidence.
Specifications
| FRAME MATERIAL | Aluminium |
| FRAME | 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm |
| FORK | Rock Shox Recon Silver RL, E-MTB, 110x15 mm, 51 mm rake |
| TRAVEL OF SUSPENSION FORK | Rock Shox Deluxe Select, 210/50 mm, hardware: 25,0 x 8,0 mm |
| SHOCK | Rock Shox Deluxe Select, 210/50 mm, hardware: 25,0 x 8,0 mm |
| MOTOR | Bosch Performance CX Gen4, 85 Nm, 250 W |
| BATTERY WATT-HOURS | 625 Wh |
| DISPLAY | Bosch LED Remote |
| SHIFTER | Shimano SLX M7100, 12-speed |
| REAR DERAILLEUR | Shimano SLX M7100, 12-speed |
| SPROCKET | Shimano SLX M7100, 12-speed |
| CHAIN | Shimano SLX CN-M7100, 12-speed |
| CRANKSET | FSA CK-320, aluminium |
| TRANSMISSION OF DRIVE | Front: 34; Rear: 10-51T |
| BOTTOM BRACKET | Integrated in Drive Unit |
| HANDLEBAR | Aluminium, 800 mm, rise: 30 mm, backsweep: 9° |
| STEM | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
| HEADSET | ACROS ZS56/ZS60 (ICR), FOCUS C.I.S. Integrated angle headset |
| SADDLE | FOCUS Trail SL |
| SEATPOST | Post Moderne dropper post PM-214, 34.9 mm |
| BRAKE CALIPER | Shimano BR-MT520, 4 piston |
| BRAKE LEVER | Shimano BR-MT520 |
| BRAKE | Disc |
| RIMS | RaceFace AR30 Offset |
| REAR HUB | Novatec D462SB, 12x148 mm |
| FRONT HUB | Novatec D041, 15x110 mm thru axle |
| TIRES | Maxxis Minion DHF, 2.6 3C EXO TR, 66-622 |
| GEARS | 12 |
| BIKE WEIGHT INCL. BATTERY IN KG | 24.9 |
| SIZE | S, M, L, XL |
Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
